Marshall Output Transformers

Key Features

• Designed for drop in replacement of original units.
• Physically, parts were designed to look similar to original factory units (where possible).
• Material used & design specs. were kept as close as possible to the original part to preserve the stock "tone".

Part Number (click for price or to order)	Spec Sheet PDF	Primary (Ohms)	Secondary (Ohms)	Amp Type	Power (Watts)	Plastic Bobbin or Paper Wound Coil?	Marshall Amplifier Model Names*	Equivalent To Marshall Part Number
1750FA		7,000 C.T.	8, 16	Push-Pull	15	Bobbin	DSL15H	DSL-15 OPT
1750PA	259K	8,400 C.T.	4, 8, 16	Push-Pull	18	Paper	18 Watt Combo	-

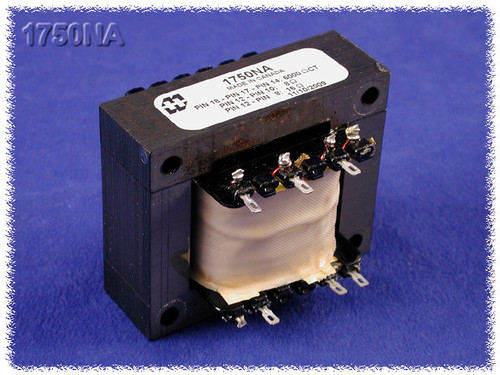

1750NA	243K	6,000 C.T.	8, 16	Push-Pull	30-60	Bobbin	JTM30, JTM60	Drake 292-772
1750N	313K	3,200 C.T.	4, 8, 16	Push-Pull	50	Bobbin	JMP, JCM 800	-
1750P	278K	3,400 C.T.	4, 8, 16	Push-Pull	50	Bobbin	JCM 900	-
1750Q	313K	7,371 C.T.	4, 8, 16	Push-Pull	50	Bobbin	JTM 45	-
1750U	333K	1,700 C.T.	4, 8, 16	Push-Pull	100	Bobbin	JMP, JCM 800	C2668
1750X	303K	1,700 C.T.	2, 4, 8, 16	Push-Pull	100	Bobbin	JCM 900	-

* DISCLAIMER: Radio Daze and Hammond Manufacturing are not affiliated with Marshall. Model names are trademarks and sole property of Marshall and are listed herein for reference purpose only.
