Universal Single-Ended Tube Output

125ESE Photo



Key Features

  • Designed for general purpose or replacement use (not Hi-Fi), in single ended, tube output circuits.
  • Frequency response: 100 Hz. - 15 Khz at full rated power (+/- 1db max. - ref. 1 Khz).
  • Open style with minimum 12" long primary & secondary leads.
  • All sizes use butt stacked cores (using 29M6 steel) with an air gap, to reduce D.C. core saturation.
  • Primary impedance range from 2,500 to 10,000 Ohms.
  • Secondary impedance range from 4 to 32 Ohms.



Part Number

Thumbnail

Audio Power
(Watts)

Max. D.C. Bias
(ma)

Weight
( lbs.)

125ASE
Click Here To Enlarge
3 25 0.5
125BSE
Click Here To Enlarge
5 45 1.1

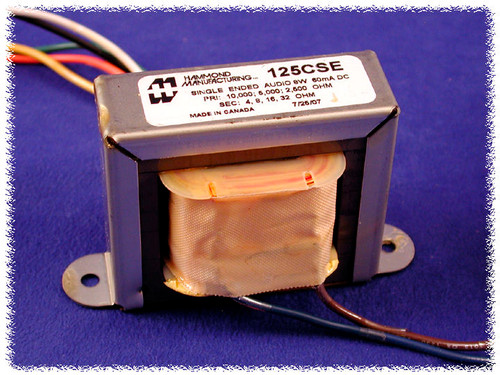

125CSE
Click Here To Enlarge
8 60 1.3
125DSE
Click Here To Enlarge
10 70 2
125ESE
Click Here To Enlarge
15 80 3
125FSE
Click Here To Enlarge
20 90 4.5
125GSE
Click Here To Enlarge
25 100 6

Test Data (125ESE)


Part Number

Primary Winding Data

Inductance
(Minimum)

DC Resistance
(+/- 20%)

125ESE 9.58 H 90.6 Ohms



Mechanical Data (125ASE - 125ESE)



125SE Dwg



Part Number

Dimensions
(Inches)

A

B

C

D

G Mtg. Hole

125ASE 2.81 1.35 1.69 2.38 0.187
125BSE 3.25 1.63 2.00 2.81 0.187
125CSE 3.69 1.86 2.31 3.13 0.187
125DSE 4.00 2.10 2.63 3.56 0.187
125ESE 4.50 2.36 2.94 4.00 0.187



Mechanical Data (125FSE & 125GSE)







Part Number

Dimensions
(Inches)

A

B

C

D

E

G Mtg. Hole

125FSE 3.76 2.52 3.15 3.13
2.25
0.2 x 0.38
125GSE 4.15 2.88 3.46 3.45
2.5
0.2 x 0.38



Schematic & Hook Up Data



125SE Schematic
